Simpson Strong-Tie® SET-3G™ 22 oz High-Strength Epoxy with Nozzle

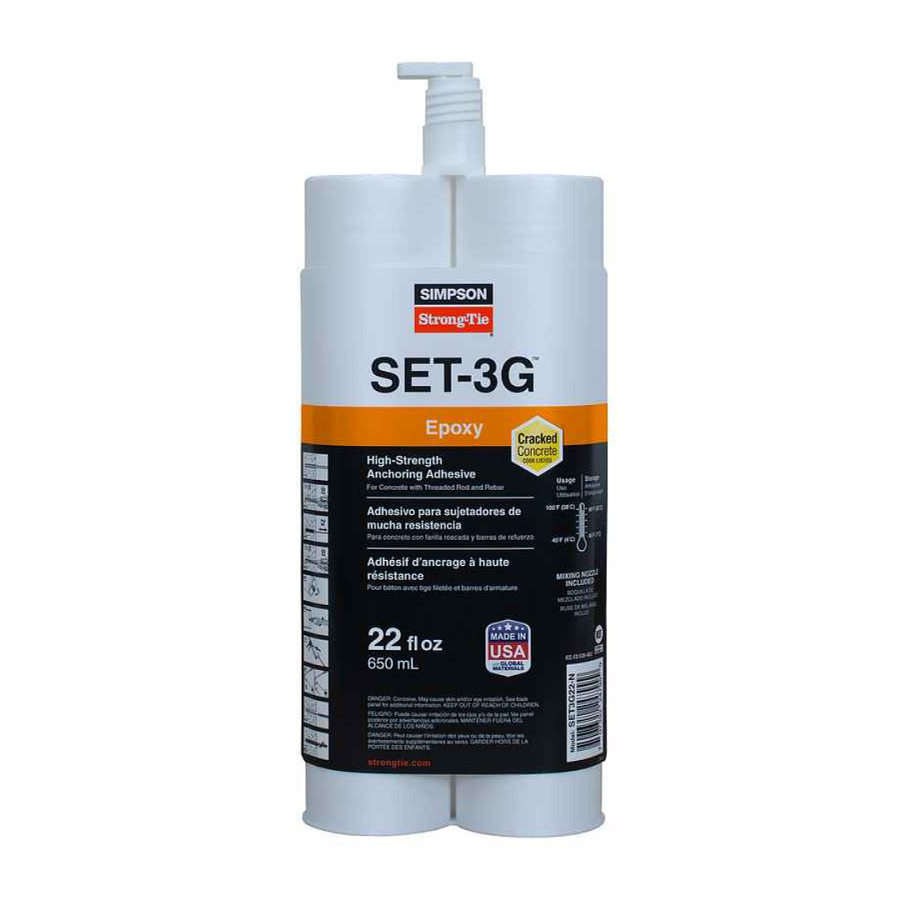

The 22 oz side-by-side cartridge is the high-volume size of SET-3G, Simpson Strong-Tie's code-listed 1:1 epoxy for anchoring threaded rod and rebar. It is the size to choose for larger jobs, large-diameter anchors and post-installed rebar connections, and it runs in Simpson's manual, pneumatic and battery-powered 22 oz dispensers. SET-3G is evaluated for cracked and uncracked concrete under ICC-ES ESR-4057, including a Florida supplement with High-Velocity Hurricane Zone compliance, and for grouted and ungrouted masonry under ESR-4844.
Key Features
- High-volume cartridge — 22 oz side-by-side cartridge with an EMN22i mixing nozzle and extension included.
- Three dispenser options — EDT22S manual, EDTA22P pneumatic or EDTA22CKT battery-powered.
- Post-installed rebar connections — development and splice length design for #3 through #11 bars, with embedment up to 84-1/2".
- Code listed — ICC-ES ESR-4057 (concrete) with Florida HVHZ and City of Los Angeles supplements; ESR-4844 (masonry); Florida FL15730.
- Seismic — qualified for Seismic Design Categories A through F in concrete.
- Wet and submerged installs — dry, water-saturated, water-filled holes and submerged concrete.
- Dust-extraction drilling — qualified with the Bosch/Simpson Strong-Tie DXS hollow-bit vacuum system, with no separate hole cleaning.
- Stainless-rod ready — ESR-4057 covers stainless threaded rod and permits it for exterior and damp exposures.
- Manufactured in the USA using global materials.
Specifications
| Model | SET3G22-N |
| Cartridge | 22 oz (650 mL) side-by-side, with EMN22i nozzle and extension |
| Chemistry | 1:1 two-component, 100% solids epoxy |
| Mixed color | Gray |
| Base materials | Cracked and uncracked normal-weight concrete, f′c 2,500–8,500 psi; grouted and ungrouted CMU |
| Installation conditions | Dry, water-saturated, water-filled holes, submerged |
| Concrete temperature at installation | 40°F to 100°F |
| In-service temperature | -40°F to 176°F short-term; 110°F maximum long-term |
| Anchor elements | 3/8" to 1-1/4" threaded rod; #3–#8 and #10 rebar anchors; #3–#11 post-installed rebar connections |
| Dispensing tools | Simpson EDT22S, EDTA22P, EDTA22CKT |
| Shelf life | 2 years unopened, stored at 45°F to 90°F |
| Code listings | ICC-ES ESR-4057 (FL supplement w/ HVHZ, City of LA); ICC-ES ESR-4844; Florida FL15730 |
Cure Schedule
| Concrete temperature | Gel time | Cure time |
|---|
| 40°F | 120 min | 192 hr |
| 50°F | 75 min | 72 hr |
| 60°F | 50 min | 48 hr |
| 70°F | 35 min | 24 hr |
| 90°F | 25 min | 24 hr |
| 100°F | 15 min | 24 hr |
Double the cure time in water-saturated concrete. When the concrete is below 70°F, condition the adhesive to at least 70°F before installing.
Post-Installed Rebar Connection Details
| Bar size | Drill bit | Embedment range |
|---|
| #3 | 1/2" | 2-3/8" to 22-1/2" |
| #4 | 5/8" | 2-3/4" to 30" |
| #5 | 3/4" | 3-1/8" to 37-1/2" |
| #6 | 7/8" | 3-1/2" to 45" |
| #7 | 1" | 3-3/4" to 52-1/2" |
| #8 | 1-1/8" | 4" to 60" |
| #9 | 1-3/8" | 4-1/2" to 67-1/2" |
| #10 | 1-3/8" | 5" to 75" |
| #11 | 1-3/4" | 5-1/2" to 84-1/2" |
Drill all holes with a rotary hammer. For threaded rod drill sizes, torque values and design data, see ICC-ES ESR-4057.
Installation Tips
- Drill with a rotary hammer to the bit diameter and embedment your design requires.
- Clean the hole with the blow-brush-blow method and the matching Simpson brush, or drill with the DXS vacuum dust-extraction system, which needs no further cleaning.
- Check the expiration date. In concrete below 70°F, warm the cartridge to at least 70°F first.
- Attach the included EMN22i nozzle, load the cartridge into an EDT22S, EDTA22P or EDTA22CKT tool and dispense to waste as directed on the label until the mix is uniform gray.
- Fill the hole from the bottom up. For horizontal and overhead work, use piston plugs with 1/2" and larger rod or #4 and larger bar.
- Insert the rod or bar, restrain horizontal and overhead installations, and leave them undisturbed for the full cure time before loading.
Frequently Asked Questions
Should I buy the 22 oz or the 8.5 oz cartridge?
Choose the 22 oz for larger jobs, large-diameter anchors and post-installed rebar connections. The 8.5 oz SET-3G fits the smaller CDT10S tool and suits smaller threaded rod and rebar anchor jobs.
Which dispensing tool do I need?
The 22 oz side-by-side cartridge requires a Simpson 22 oz dispenser: the EDT22S manual tool, the EDTA22P pneumatic tool or the EDTA22CKT battery-powered tool. It will not fit a standard caulking gun.
Can I use stainless steel threaded rod with SET-3G?
Yes. ESR-4057 covers ASTM A193 B6, B8 and B8M and ASTM F593 stainless rod, and permits stainless or hot-dip galvanized rod for exterior and damp exposures.
Can I use SET-3G in cold weather?
Only in concrete at 40°F or warmer, with cure times up to 192 hours at that temperature. For colder work or same-day loading, use AT-3G™.
Are there temperature conditions where SET-3G should not be used?
Do not use it where the in-service concrete temperature can swing from 40°F or below to 80°F or above within 12 hours, such as facade anchorage in direct sun.
